The LWDAQ (Long-Wire Data Acquisition) Specification calls for CAT-5 eight-way straight-through cables. We chose two varieties of CAT-5 cable and one universal modular plug for use with the LWDAQ. Both cables are halogen-free, as required by European safety regulations. Both cables pass, for example, the CERN (European Organization for Nuclear Research) safety standards for subterranean installation. In our first long-term tests of the LWDAQ, we found that the reliability of the system was limited by the reliability of its cables. Since then, we have found that proper preparation of the cables, followed by proper application of matching connectors, strain reliefs, and protective boots, improves the reliability LWDAQ cables to the point where cable and connector failures are no more common than electronic and mechanical failures elsewhere in the system.

In this manual, we provide detailed instructions for making LWDAQ cables out of our recommended cables and connectors. We describe the making of black cables out of our black stranded-conductor cable, and blue cables out of our blue solid-conductor cable. The black cables can be up to 13 m long, and the blue cables can be up to 130 m long. The black cables are intended to act as LWDAQ branch cables (from multiplexers to devices), and the blue cables are intended to act as LWDAQ root cables (from multiplexers to drivers). That is not to say that you cannot have blue branch cables and black root cables. You certainly can have blue branch cables, and they can be up to 130 m long, just like blue root cables. And you can have black root cables as well, but they can be no more than 13 m long, just like black branch cables.

Both the blue and black cables have foil shields, but the blue cable uses solid copper conductors, while the black cable uses stranded conductors. The solid conductors of the blue cable are electrically faster and present lower resistance, so blue cables can be ten times longer than black cables. The black cable is a standard CAT-5 cable with four twisted pairs, but the blue cable is a custom CAT-5 cable with only two twisted pairs. The remaining four conductors in the blue cable are untwisted, and used for LWDAQ power.

If your LWDAQ cables are short, perhaps because you are using the LWDAQ in your laboratory, consider buying ready-made straight-through Ethernet cables instead of making your own LWDAQ cables. Ethernet cables can be used as LWDAQ cables in most circumstances, as we explain below.


All LWDAQ cables are CAT-5 (Catagory Five) network cables, as specified in the LWDAQ Cables section of the LWDAQ Specification. The table below gives the color code and pin names for the connections at both ends of all LWDAQ cables.

PinSignalWire ColorDescription
1T+BrownLVD Transmit Positive from Driver
2T-Brown and WhiteLVD Transmit Negative from Driver
3R+OrangeLVD Receive Positive from Device
4R-Orange and WhiteLVD Receive Negative from Device
5+5VGreen5-Volt Power
60VGreen and White0-Volt Return
7+15VBlue+15-Volt Power
8-15VBlue and White-15-Volt Power
Table: LWDAQ plug and socket pin-outs and wire color codes. The brown wire must be twisted with the brown-and-white wire. The orange wire must be twisted with the orange-and-white wire.

The cable can be CAT-5, or it can be a special case of CAT-5 in which only the brown and orange pairs are twisted together, but the remaining four wires are untwisted. Our blue cable is the latter. Leaving four wires untwisted decreases the overall cable diameter, allowing the manufacturer of our blue cable to meet the CAT-5 dispersion and resistance specifications with a solid-conductor shielded cable, and keep the diameter within the CAT-5 specification as well.

The CAT-5 dispersion and resistance specification for cable with solid-wire conductors is far more stringent than that for cable with stranded-wire conductors. High-frequency signals travel along the surface of wires, as a consequence of the skin effect. We discuss the skin effect and how it distorts signals in transmission lines here. A 1 GHz wave travels in the top 2 μm of a wire. A solid copper conductor with a smooth surface and circular cross-section provides far better transmission at high frequencies than a stranded conductor of the same diameter, whose copper surfaces are less smooth and whose outer diameter is less circular. Stranded-wire cable, on the other hand, is far more flexible than solid-wire cable.

Stranded CAT-5 is intended for short cables, often called patch cables, and solid-wire cable is intended for long cables, such as those used to distribute a local area network throughout a building. We would like to give you a link to the CAT-5 specification, but we cannot find a site at which the specification is available for free.

Below is a graph we obtained with the first version of our LWDAQ electronics. The graph shows how the returned analog signal becomes attenuated by the above cables as we increase the length of the cables. The graph shows the saturated image contrast we obtain from a Polar BCAM versus cable length, with and withough repeaters. The total cable length is the sum of the lengths of all the cables between the driver and the device.

Figure: Image Contrast for Cable Length. LWDAQ Driver (A2037E) with LWDAQ Repeater (A2058). At the end of the second root cable is a LWDAQ Multiplexer (A2046A) loaded with ten Polar BCAMs. We use two of these BCAMs to obtain a saturated laser image.

For lengths less than 100 m, we see the image contrast decreases as we expect from the voltage divider formed by the cable resistance (approximately 10 Ω per 100 m) and the terminating resistor in the driver (100 Ω). After that, the contrast begins to vary sharply with cable length. This sharp variation is an interaction between the driver's cable-length compensation system and the smoothing of signal transitions along the cables. The driver measures the time taken for an electrical signal to propagate to and from the device, a time we call the loop time, and uses the loop time to synchronize its digitization of returned analog signals with outgoing digital clocks. A 10-ns change in the loop time, which is the same as changing the total cable length by 1 m, can cause a significant change in the image contast. In addition to these rapid cyclic changes, we continue to see an underlying decrease in image contrast. At around 140 m without a repeater, the lasers stop flashing. The outgoing LVD signal has been attenuated beyond recognition by dispersion in the cable. When we add a repeater at 80 m or 130 m, we find that we can increase the total cable length to 200 m and 220 m respectively. Once again, failure is sudden, and takes place because the lasers on the BCAM stop flashing.

Below is a graph we obtained with the second version of our LWDAQ electronics. The graph shows image brightness as we increase the length of cable between the driver and a BCAM camera.

Figure: Image Contrast for Cable Length. LWDAQ Driver (A2071E) with LWDAQ Repeater (A2084A). At the end of the second root cable is an N-BCAM that takes images of two lasers on another BCAM. The second BCAM is connected by a short cable to the driver.

The performance of the new circuits is similar to the original. We see a drop in image brightness as a result of cable resistance, and failure of command reception at a critical cable length.


Our black cable is a halogen-free stranded CAT-5 cable, part number TFDL2005 (data sheet can be found here). We buy these directly from manufacturer L-Com. Note: The data sheets show specifications for TFDL2004-6, which are identical except in jacket color.

Manufacturer Part Number: TFDL2005
Manufacturer: L-Com
Conductor: stranded bare copper
Insulation: polyolefin
Shield: aluminized polyester tape
Drain Wire: tinned copper
Jacket Diameter: 6.2 mm max
Jacket: low-smoke zero halogen
Operating Temperature: 75 C max
Approximate Price in 2016: 1.50 $/m
Mass: 44 g/m

Our blue cable is a halogen-free solid-wire modified CAT-5 cable, part number 08508 designed by Quabbin Wire and Cable for the LWDAQ. The blue cable is faster on its two twisted pairs than the white cable, and offers less resistance. But it offers only two twisted pairs instead of the CAT-5 specification's four twisted pairs. The LWDAQ needs only two twisted pairs. The remaining four wires it uses for power.

Manufacturer Part Number: 08508
Manufacturer: Quabbin Wire and Cable, USA
Conductor: solid copper
Insulation: foam polypropylene
Shield: aluminized polyester foil
Drain Wire: 24 AWG solid tinned
Jacket Diameter: 5.6 mm max
Jacket: low-smoke zero halogen
Operating Temperature: 60 C max
Approximate Price in 2016: 1.50 $/m
Mass: 39 g/m

The stranded-wire and solid-wire use the same connector. This connector comes with an attached strain relief. The strain relief holds the cable jacket firmly, and presses against the cable's drain wire, so that we have reliable connection between the cable shield and the connector shield. The connector also comes with a load bar, shown as number 4 here. The load bar makes it easier to prepare the wires for insertion into the connector. We recommend that the load bar is used for the production of black cables and not blue cables, but since the connector comes with the load bar you may still choose to use the it for blue cables as well.

Manufacturer Part Number: 0449150021
Digi-Key Part Number: WM4638-ND
Manufacturer: Molex LLC
Description: modular plug, shielded, 8-way, with load bar.
For Cable Type: round cable
For Conductor Type: stranded or solid wire
Approximate Price in 2016: $2 each

Note that the black cable is fully CAT-5, and you can use it to make Ethernet cables according to the industry-standard Ethernet color codes and pinouts. But the blue cable is a modified CAT-5 cable. You can make an Ethernet cable with our blue cable, but you need to use a modified color code, as we explain below.

Figure: Various Connector Boots. Clockwise from left: orange, purple, red, white, gray, black, yellow, green, blue.

The above figure shows the various colors of connector boots we use LWDAQ cables. The cable openings on our boots have a diameter of 6.0 mm. All our boots provide a protective cover for the connector locking tab. The cover allows you to drag the cable across the floor and through apertures without worrying about snapping the tab off. The cover unfortunately also makes it more difficult to press the locking tab down to release the connector. We tried boots without the protective cover, and they are easier to use when you are plugging in and unplugging the connector frequently. But it is easy enough to cut the protective cover off the boot with a razor blade for those cables that you are frequently unplugging. So we settled in the end upon boots with the protective cover.

The boots provide a small flat space on one side in which you can write a number to distinguish between cables with the same boot color.


Our Cable-Making Kit contains the following.

  1. 20 universal connectors with load bars and attached strain relief (Molex 0449150021, Digi-Key WM4638)
  2. 1 eight-position modular crimp tool (Steward Connector 2990003-01, Digi-Key 380-1057)
  3. 20 m of halogen-free CAT-5 black cable with stranded conductors (Belden TFDL2005)
  4. 20 m of halogen-free CAT-5 blue cable with solid conductors (Quabbin 08508)
  5. 20 connector boots of various colors.

To make cables according to our instructions, you will also need a scalpel or razor blade, a pair of wire cutters, a magnifying glass, and a bright lamp.

It is possible that you may have parts from old kits, including a white stranded cable and connectors without strain relief attached. If you have these parts, see the section entitled Differences from Old Manual for assembly instructions. Specifications for these parts are in the section titled Old Parts.

Black Cables

The figure below shows the end of a cable with about 25 mm of jacket and shield removed. The individual conductors are separated and arranged in the order in which they must be inserted into the connector. A clear plastic loadbar comes with the connector to hold the wires while we insert them into the connector. The boot is already on the cable out of sight. The drain wire, which provides electrical connection to the shield, is twisted together and pushed to the side. Your first step in making a cable is to push the plastic boot onto the cable. There is no way to put the boot on after you have attached the connectors.

Figure: Connector with Strain Relief (1), Prepared, Untwisted Wires in Order (2), Twisted Drain Wire (3), and Load Bar (4).

Remove 25 mm of jacket from the end of the cable. Cut around the cable with a scalpel, bend the jacket at the cut a couple of times, and pull the jacket off over the end of the cable. You do not have to worry too much about cutting the conductors, because the shield protects them. Don't cut so hard that you pass through the shield and cut the wire insulation. With the jacket removed from the end of the cable, you will encounter the drain wire. The drain wire is stranded. Unwrap the drain wire from the cable and twist it around itself. The drain wire is connected to the shield inside the cable. Fold the twisted drain wires back and keep it out of the way until crimping the strain relief.

Tear off the foil shield. You probably scratched it already with the scalpel when removing the jacket, so it should tear easily. If not, cut it off with your wire cutters. Remove the transparent binder around the wires as well, which you might also have to cut with your wire cutters. Study the wire insulation where you made your scalpel cut, looking for nicks. If you see any, cut the cable back and start again.

Separate the wires of each twisted pair by inserting your nail or a screwdriver in between the wires near the jacket, and pulling out to the end of the pair. Straighten the wires as best you can, and arrange them in the correct order, as shown above. From left to right, the order is brown, brown-and-white, orange, orange-and-white, green, green-and-white, blue, then finally blue-and-white. Insert each wire one at a time into the load bar. There is a seperate hole for each wire, and the holes are small and long enough that inserting the wires all at once is difficult. The load bar is symmetric: so as long as the colors are in order it does not matter from which side you start. When all wires are inserted into the load bar, cut the wires so that they are even and square-cut at the ends. The total length of the wires between the ends and the jacket should now be about 15 mm.

Straigten the wires as much as possible. Bends in the wires make it more likely that the wires will get stuck inside the connector and not fully reach the end. Despite the staggered pattern of both the load bar and the final position of the wires in the connector, the wires must be organised into a straight line before insertion into the connector.

Figure: Load Bar and Wires Ready for Insertion in Connector. Connector with Strain Relief Bent.

Fold back the strain relief attatched to the connector. Hold the connector with the locking tab down, and hold the cable with the open face of the load bar on the top. The brown wire must be on the left, and the blue-and-white wire must be on the right as you look into the open side of the connector. The twisted drain wire should be folded down and out of the way. Push the load bar into the aperture at the base of the connector. As the jacket begins to enter the connector, you may feel some resistance. Ease the cable into the connector, and pay attention to whether the wires are able to slide cleanly into their slots or if they are hitting a wall. Do not push hard until it is clear that each wire has found its place. Once this happens, force the cable farther inside. When it stops, push harder and move the cable back and forth, to work the wires down to the very end of the connector. Make sure the black jacket enters the base of the connector. Push until the black jacket will not go any farther. The transparent end of the connector should look like the photograph below.

Figure: Connector with Wires Inserted before Crimping.

With your bright light and magnifying glass, examine the end of the connector. You should see eight wires with their stranded conductors sparkling in the light pressed up against the transparent end wall of the connector housing. Also, inspect the wires through the sides of the connector. Using the magnifying glass, you should see that all wires are pressed firmly against the end. If the wires are there, you will see each of them clearly, and you can be sure that you are ready to crimp the connector. If you cannot see all eight wires clearly through the end wall of the connector, pull out the wires and the load bar and try again. It is possible that the wires have become too bent to properly reach the end of the connector. You may need to use your fingers or pliers to straighten them out. Be sure the wires remain in the correct order.

Assuming all the wires are visible and in their proper places, you are ready to crimp. Be sure that the strain relief will not be in the way of the crimper when the connector is inserted. Push the connector into the modular crimping tool as show below and squeeze the tool's crimping arms together. You should hear a snapping noise to indicate that the crimp is finished. This is the sound of the jacket restraint inside the connector snapping into place. Take the connector out of the tool. You may need to press down the locking tab on the connector in order to get the connector out of the crimper. Looking in the open end of the connector, you should see that the jacket restraint has been forced down into the jacket, holding it in place.

Figure: Connector Inserted in the Modular Crimp Tool.

Check that all eight crimp terminals are pressed down into the connector. None of the crimp terminals should stick out above the plastic ridges that separate them.

The jacket restraint holds the jacket in place, but we would like additional strain relief on the cable to stop the cable becoming loose in the connector. Furthermore, we have not yet made reliable contact between the connector and cable shields. The strain relief attached to the connector solves both these problems for us. It holds the cable firmly and grabs onto the cable's drain wire to make the connection between the cable and connector shield. Pull back the strain relief back so it touches the cable jacket. Fold the arms of the strain relief around both the cable jacket and the drain wire. If the strain relief arms are not folded around the wire, they may be pushed in the opposite direction when you crimp the strain relief.

You may crimp the strain relief either with pliers, or a crimp tool with the right size aperture, or with a special strain relief crimp tool. The photograph below shows the special strain relief crimp tool we like to use, but this tool is no longer being manufactured. If you have a crimp tool that will work with the strain relief, insert the strain relief into the crimper. Use the circular set of teeth farthest from the handle. Press firmly until you hear a click and the crimper releases. The strain relief should now be fixed firmly in place.

Figure: Connector Inserted in the Strain Relief Crimp Tool, Ready for Crimping the Cable-Gripping Arms. If you don't have a crimp tool that will close the strain relief crimp, you can close them with pliers.

Trim the drain wire and push the connector boot up over the base of the connector. The finished product looks like the photograph below.

Figure: Finished Black Cable Connector with Boot.

To complete your cable, put a connector on the other end as well. Remember to put the boot on before beginning to attach the connector. Measure the length of the cable and add 20 mm to the required length before cutting the cable. Now remove the final twenty millimeters of jacket, and you will end up, after following the procedure given above, with a cable of the correct length, give or take a few millimeters.

Blue Cables

Remove 25mm of the blue cable jacket in the same way as the black cable. There is a foil shield inside, but usually this comes off with the jacket. Inside you will find a solid drain wire and all other wires wrapped in plastic. Bend the drain wire out of the way before removing the plastic.

The figure below shows the wires of a blue cable exposed after the jacket and shield have been cut back. You will notice that the brown and the orange twisted pairs are wrapped in their own transparent plastic binder. You must unwrap this binder before you can separate the wires as shown in above.

Figure: Blue Cable with Jacket and Shield Cut Back. Brown and Orange Wire Pairs Wrapped in Plastic. Drain wire bent back in bottom left.

Figure: Solid Wires Straigtened and Organised for Insertion into Connector. We prefer not to use the load bar because the solid wires are stiff enough that they do not need the extra support.

The blue wire's conductors are solid copper, so they are stiffer. This means that they are more difficult to straighten out, but they are easier to push into the connector. You can build a blue cable with or without a load bar. Load bars are useful in keeping the wires in order inside the connector, but the solid wires are stiff enough that they are not necessary. Follow the same procedure as you would for black cables, with the following changes:

  1. When you separate the wires, you will find the binder around the two twisted pairs presents you with some difficulty. We remove the binder by untwisting the wires inside, so that the binder itself untwists. We then cut the binder at the base, perpendicular to the wires, and peel it off. Be sure not to nick the wire insulation.

  2. The drain wire is solid. Simply bend it out of the way until you crimp the strain relief. Crimp the strain relief around it as you did with the twisted stranded drain wire with the black cables.

  3. Cut 25 mm of jacket off. With the wires arranged in order, cut them straight across as shown here. You should leave 20 mm of wire protruding from the jacket. The exposed wire must be longer so that when the connector is crimped, the jacket restraint should not actually grab onto the jacket.

  4. The jacket should not enter the base of the connector, so we rely upon the strain relief to hold the jacket firmly. Be sure to wrap the drain wire around the strain relief for the shield connection.

  5. You may or may not choose to use the load bar. Without the load bar, straighten and arrange the wires in the same order as before, but hold them firmly in between your thumb and index finger. Push the wires into the connector the same way you would with the load bar, being very careful not to loosen your grip. If you do choose to use it, it will be easier to insert the wires into the connector because you will not need to grip the wires. It is easier on your fingers because you can hold onto the jacket and avoid trying to stick your fingers into the connector.

When you make root cables, be sure that you are using the solid-wire connectors, not the stranded-wire connectors. If you use the stranded-wire connectors, the teeth of the connector contacts will attempt to cut through the center of the solid wires, and when they fail to do so, they will pass to one side, and the contact between them and the wire will be unreliable. In a few years, oxide will build up on the copper and contact will be intermittent.

Figure: Completed Blue Cable

Low-Profile Cables

You may find that you don't have space adjacent to your LWDAQ device for a strain relief and a connector boot. In that case, you can sacrifice shielding and toughness for a smaller connector. The figure below shows our cut-off, unshielded modular plug that is part of a low-profile cable. You make one of cutt-off plugs by cutting off the jacket-crimping part of an unshielded modular connector like the 940-SP-3088R from Steward Connector. The jacket-crimping part is the rear 11 mm. We made our cut-off plugs on a band saw, where we were able to cut three per minute without hurrying. At first, we cut off the connector's release tab along with the connector body, but after complaints from our users we started leaving the tab intact.

Figure: Low-Profile Cable.

To make the low-profile cable, you strip the jacket and shield from the cable, add a cut-off plug to one end, and an ordinary unshielded plug to the other. Removing the jacket and shield allows you to get the wires through tight spaces. We forsee no problems with cables like these up to 100 cm long. If you are going to make them longer than that, we suggest you try the cables in their final environment, so you can see if they contaminate other instruments with broadcast noise, or if the LWDAQ signals are themselves contaminated.

To keep the unshielded cables short, you can use an RJ-45 union 50 cm to 100 cm from the cut-off plug. If you use a shielded metal union, you can connect the union housing to your local ground, so that the shield leading to the union will operate properly.

Out of ten low-profile cables we made, three did not work. We had to replace the cut-off connector because we had not crimped it properly. Crimping the cut-off connector takes some care, because crimpers like the one we recommend above use the rear end of the plug to stop you from pushing the plug too far into the crimper. The cut-off plug has no rear, and so you must be careful not to push it in too far. Once we discovered this problem, we were able to crimp the cut-off connectors reliably.

Our chief concern with these low-profile cables is not noise, signal integrity, and cross-talk, but rather the mechanical integrity of the connectors. The wires are held in place each by their own contact crimp. There is no other strain relief. We recommend adding a cable tie around the twisted pair bundles, about 10 cm from each connector. This helps spread cable strain across the eight wire crimps.

Figure: Hybrid Low-Profile Cable. Note the heat shrink protecting the end of the jacket, and the locking tab that is longer than the cut-off connector.

Another way to make the low-profile cable more rugged is to leave the jacket on for most of the length of the cable, as shown above. This hybrid low-profile cable is 100 cm long, with the final 20 cm bare of jacket and shield.


We do not provide a special test circuit for cables. We thought about designing one, but testing the high-frequency properties of the cable is difficult. Ethernet cable test devices can cost up to a thousand dollars. So in the end we decided to use what you have already on hand: the LWDAQ and a voltmeter. Testing a cable with the LWDAQ is a four-step process. You will need a LWDAQ with an analog image sensor of some variety, like the Inplane Image Sensor (A2036), the Camera (A2056), or a BCAM Head (A2048).

Step One: Hold both connectors in front of you with the locking tabs down. Make sure that the left-most pin on each connector is connected to the brown wire. This step makes sure you have not reversed the order of the wires, an error that damages multiplexers and devices.

Step Two: Hold both connectors in front of you, and measure the resistance between their shields. This resistance should be < 10 Ω. This is the only check of the shield we perform: we assume that it will work correctly to block out noise and prevent radiation so long as it is connected at either end.

Step Three: Hold one connector in front of you. Measure the resistance between the shield and each of pins 3 and 4. Don't press hard on the two connector pins, because you will bend the plastic trench around the gold contact. This resistance should be > 1 MΩ. When either of these two pins is connected to the shield, it is possible for the cable to provide image capture with good contrast when it connects a device to a driver, but fail to provide good contrast when we combine the cable with a repeater or a multiplexer. It is far more likely that you will discover a connection between the shield and pins 3 or 4 when you are making a blue cable than a black cable. The two wires to which pins 3 and 4 are connected are bundled together in the blue cable, and are made of solid copper. When you crimp the connector, a plastic tab pushes down into the bundle of wires, and we have observed it to push aside the insluation around the wires, thus exposing them to the connector shield.

Step Four: Capture live images from an analog image sensor.

We know of no cable errors that can pass through all four of the above tests, but all tests are necessary.

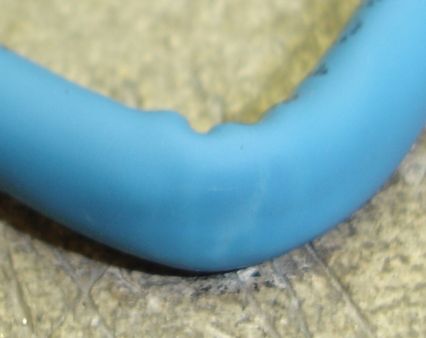

[24-MAY-21] Our recommended minimum bending radius for solid-conductor LWDAQ cables is 5 cm, and for stranded-conductor LWDAQ cables is 2 cm. Our blue cable is solid-conductor. Our white and black cables are stranded-conductor. These recommendations are conservative in that we know perfectly well that the cable can survive sharper bends. But cable-routers often ask for a specification they can follow, and the above radii are certain to cause no problems.

The black cable is flexible: we can bend it back upon itself many times without seeing any effect upon the jacket, shield, or conductors. But the blue cable is much more stiff, on account of its solid-wire conductors. The halogen-free jacket is not as resiliant as a halogenated jacket. The result is a cable that can become disfigured after repeated right-angle bending. As Alex Asen reporst, "I bent the blue cable back and forth at a right angle twenty times. After the test, the jacket is slightly discolored, turning from blue to white. The photograph accurately reflects the amount of discoloration. The bending test caused several breaks in the aluminum foil shielding. The foil, however, has a thin plastic backing that prevent it from tearing completely through. The plastic backing remained completely intact even in place where the foil broke. No single tear in the foil runs the entire width of the foil, so the electrical continuity of the shielding was not broken. Although it appears that a great number of bends would eventually break the continuity of the foil, after twenty bends there is no single gap larger than half the width of the foil. There is no visible damage to any of the wires inside the shielding and all passed testing with the cable tester."

We have the following report from Anatoli Kozhin, which appears to agree with Alex's findings. "It was the simplest test, I have bended (90 degrees, about 0.5-1cm of radius) the cable few times in one place, check its integrity by the cable-tester, then opened the jacket and looked at the shielding aluminium foil. The foil was locally destroyed, The jacket was not destroyed, only slightly changed colour (became white) in place of bending."

Ethernet Cables

Warning: Gigabit cross-over cables destroy LWDAQ devices.

The table below gives the pinout for a straight-through Ethernet cable. LWDAQ and Ethernet cables look the same. They use CAT-5 cable and have eight-way modular connectors on either end. You can use one type of cable in the place of another. In particular, you can buy commercial ethernet cables up to 10 m long and use them in your laboratory LWDAQ.

PinSignalWire ColorDescription
1T+Orange and WhiteLVD Transmit Positive
2T-OrangeLVS Transmit Negative
3R+Green and WhiteLVD Receive Positive
5NCBlue and WhiteUnused
6R-GreenLVD Receive Negative
7NCBrown and WhiteUnused
Table: 10-Base-T and 100-Base-T Straight Through Cable Wiring. The orange wire must be twisted with the orange-and-white wire. The green wire must be twisted with the green-and-white wire.

The first thing to note about the straight-through Ethernet cable is that it connects precisely the same pins on its connectors as would a LWDAQ cable. One difference is that pins 3 and 4 pass share a twisted pair of wires in the LWDAQ cable, but not so in the Ethernet cable. Conversely, pins 3 and 6 share a twisted pair of wires in the Ethernet cable, but not so in the LWDAQ cable. This difference between the two cables has no effect upon their behavior at lengths of a few meters. The color coding is different of the two cables is different, too, but this does not affect short cables either.

Claim: LWDAQ and Straight-Through Ethernet cables are interchangeable for lengths up to a few meters.

Let us consider what happens if we use a long straight-through Ethernet cable as a LWDAQ cable. The LWDAQ's T+ and T- LVDS (low voltage differential signal) propagates along the twisted pair of wires with colors orange-and-white and orange respectively. The R+ and R- lines do not propagate down a twisted pair. The high-frequency components of the signal recovered by the driver at the end of a long cable will be attenuated. If the signal returned from the LWDAQ device is 2-MHz analog data, such as that returned from a BCAM Head (A2051), or low-frequency measurements such as those from the RTD Head (A2053), this high-frequency attenuation will be of no consequence. But if the device is transmitting logic signals with 50-ns pulses, as some of our future devices will do, the returned signal might be unusable.

Claim: Any Straight-Through Ethernet cable up to 10 m long can be used as an LWDAQ Cable.

If we use a LWDAQ cable as an Ethernet cable, the Ethernet R+ and R- signals don't get passed along a twisted pair of wires. Our experience is that a ten-meter blue LWDAQ cable will work for 10-Base-T but not 100-Base-T. A five-meter black LWDAQ cable will also work for 10-Base-T but not 100-Bast-T. You might hope that your computer will auto-negotiate 10-Base-T instead of 100-Base-T when it is communicating across such a cable, but that is not what happens. Instead, the computer selects 100-Base-T any time the device at the other end supports 100-Base-T, and then the communication is slow because of packet loss.

One final thing we might worry about is, "What happens if we connect a LWDAQ socket to an Ethernet socket?" If you look at the two cable pin-outs, you will see that the LWDAQ connects no power to any of the Ethernet signal pins, so no damage will occur to either device.

Claim: No harm will come to either device if we connect any LWDAQ socket to any un-powered Etherenet socket.

We say un-powered because sometimes networks, especially ethernet-based phone networks, use the four free wires on the Ethernet cable to carry power for Ethernet devices. If power is carried on these pins, it might blow the LWDAQ R+ input. The power supplies themselves will conflict with one another, and both are, presumable, protected against short circuits.

Claim: No harm will come to a powered Ethernet socket if you plug it into any LWDAQ socket.

Claim: You might damage the LVDS R+ input on a LWDAQ Multiplexer or LWDAQ Device if you plug either into a powered Ethernet socket.

If you use our blue cable to make a straight-through Ethernet cable, then you should change the color code of the Ethernet cable. Use the brown-white and brown wires for R+ and R-. If you use the usual Ethernet colors, Ethernet R+ and R- will not be twisted together, and the cable will attenuate a 100-Base-T signal.

Now let us consider Ethernet cross-over cables. The 10-Base-T and 100-Base-T cross-over cables exchange pins 1 and 2 with pins 3 and 6, but are otherwise the same as straight-through cables. A LWDAQ device will not work with such a cross-over cable, but neither will it suffer any damage. The same is not true for 1000-Base-T (gigabit) cross-over cables. These switch all the remaining pins around as well, and connect power in reverse to the LWDAQ device. The cable destroys the device. In the case of several A2051 devices connected with a gigabit cross-over cable, all seven logic chips on the board were destroyed.

Old Parts

Before 2016, we used parts that differ from the ones listed above. You may still have some of these parts from previous kits. Below are the specifications for each of the old parts.

Our stranded cable was a white halogen-free stranded CAT-5 cable, part number 2809 (data sheet pages one and two) from manufacturer Quabbin, which we bought from distributor Anixter. Halogen-free cable is unusual in the United States, so this cable had a 25,000-ft minimum order.

Manufacturer Part Number: 2809
Manufacturer: Quabbin Wire and Cable, USA
Conductor: stranded tinned copper
Insulation: foam polypropylene
Shield: aluminized polyester foil
Drain Wire: 26 AWG solid tinned
Jacket Diameter: 5.6 mm max
Jacket: low-smoke zero halogen
Operating Temperature: 60 C max
Flame Rating: IEC 332 part 1
Corrosive Gas: IEC 754
Smoke Emission: IEC 1034
Jacket Tensile: 2000psi min
Jacket Elongation: 160 % min
Tear Resistance (per ASTM D1004): 35 lb/in min.
Price in 2015: 1.38 $/m

The white cable provided a foil shield and drain wire. We used the drain wire and a seperate metal strain relief part to connect the cable shield to the shield of a modular plug. The modular plug we recommended for all white LWDAQ cables was the 5-569552-3 from Amp (Part number A9111-ND from Digi-Key). This plug comes with a load bar, which is the black part shown below. This load bar does not have individual slots for each wire, but rather has one long slot into which all wires must be inserted in order. This connector is obsolete and have been discontinued.

Figure: White Cables shown with wires inserted into Load Bar.

Manufacturer Part Number: 5-569552-3
Digi-Key Part Number: A9111-ND
Manufacturer: AMP/Tyco Electronics, USA
Description: modular plug, shielded, 8-way, with load bar.
For Cable Type: round cable
For Conductor Type: stranded wire
Approximate Price: $1 each

Along with the shielded plug, we used a seperate strain relief, part number 558527-1 from Amp (Part number A9130-ND from Digi-Key). The strain relief holds the cable jacket firmly, and presses against the cable's drain wire, so that we have reliable connection between the cable shield and the connector shield. This strain relief must be attached seperately to the connector and the cable jacket after the connector is crimped.

Our blue cable has not changed. However, we used to use different connectors for the stranded and solid wires. The modular plug we used for all blue LWDAQ cables is the 5-569530-3 from Amp (A9115-ND from Digi-Key).

Manufacturer Part Number: 5-569530-3
Digi-Key Part Number: A9115
Manufacturer: AMP/Tyco Electronics, USA
Description: modular plug, shielded, 8-way, with load bar.
For Cable Type: round cable
For Conductor Type: solid wire
Approximate Price: $1 each

Unlike the connector we recommend for the branch cables, the above connector did not come with a load bar. There is another connector AMP, part number 5-569550-3, Digi-Key part number A9112-ND, which does provide a load bar. Both of these connectors are obsolete and have been discontinued. Along with the shilelded, solid-wire plug we use the same strain relief with this plug as we use with the stranded-wire plug (558527-1, part number A9130-ND from Digi-Key).

The old stranded-wire and solid-wire connectors are almost identical, but if you look at the crimping contacts with a magnifying glass, you will see one essential difference between them. The crimps of the stranded-wire connector have two teeth that bite straight down and through the insulation and conductors of each wire. But the solid-wire crimps have two teeth angles away from one another slightly, so that they bit down on either side of the solid conductor inside the wire. Both differ from the new connectors, which have no metal teeth at all.

Differences from Old Manual

In 2016, we switched to new parts. You may still have some of these parts left over from before the change. The old parts included

  1. White stranded cable instead of black, with stranded drain wire that is already twisted together
  2. Different connectors for solid and stranded wire cables
  3. Different load bars with shorter holes for wires and open loading slot
  4. Strain relief seperate from connector

Figure: Old Parts for Stranded Cables. Shown are Load Bar (1), Strain Relief (2), Drain Wire (3), Stranded Connector (4).

You can follow the same procedure for producing white cables as you would for new black cables with the following changes:

  1. The drain wire is already twisted together. Fold it back until crimping the strain relief.

  2. You may choose to insert each wire seperately into the load bar as you would with the new one, however we found that it is easier to arrange the wires between your thumb and forefinger and insert them all at once. Insert the wires so that the open side of the load bar is facing up. If you choose to do this, be sure the wires are straight so they stay in the proper order, and keep a very firm grip on the sorted wires to avoid allowing them to come loose. You may also choose to insert each wire individually as you would with the new load bar.

  3. Wires must be cut before insertion into the load bar, as the stranded wires will be too curly to fit properly and smoothly. Cut the wires until they protrude 15mm from your fingers. Do this without relaxing your grip, or the wires will get mixed up.

  4. The strain relief must be attached seperately. It has two pins that fit into two notches at the base of the connector. The notches are at the base of the connector, where the cable enters, on the opposite side from the locking tab. The notches are almost invisible, but you can feel them with your fingers. The strain relief crimp tool comes with some clear drawings which will help you apply the strain relief correctly, and we you can also look at the manufacturer's drawing of the strain relief itself for some guidance. Push the strain relief pins as far as you can into the notches, so that the strain relief sticks to the connector. Use the flat surfaces on the tips of the strain relief crimp tool to push the strain relief all the way into the connector, as show below. The strain relief should now be fixed firmly in place.

Figure: Strain Relief being Pressed into Connector

The finished product should look like the photo below.

Figure: Finished White Cable with Boot

The old blue cables can be produced in exactly the same way as the new ones, with the exception of the attachment of the strain relief. It is more important with the old connectors that more of the jacket is removed so that the metal teeth of the connector do not oxidize and affect the solid wires.


If you follow the instructions we give here, and use the cable, connectors, and tools we recommend, you will make reliable, robust cables. Black and white cables are more flexible. The twisted pairs are not wrapped in individual binders, unlike those in the blue wires, but can be difficult to insert properly into the connector. The blue cable contains two twisted pairs, and each is wrapped in its own binder, which may be difficult to unbind before you apply the modular connector. However, the stiffness makes it easy to insert into the connector, even without the use of a load bar. The blue cables can be over 130 m long, compared to only 13 m for the black cables.

If you do not want to make your own LWDAQ Cables, and you are working in a laboratory where halogen-free cables are not a requirement, you can try using commercially-available eight-way straight-through Ethernet cables with the LWDAQ. You don't have to worry about damaging either the LWDAQ or Ethernet sockets through any confusion about which cable plugs into which socket. No such damage will occur, except possibly in the rare case of a powered ethernet socket, which might damage a LWDAQ device if you conect them together.
